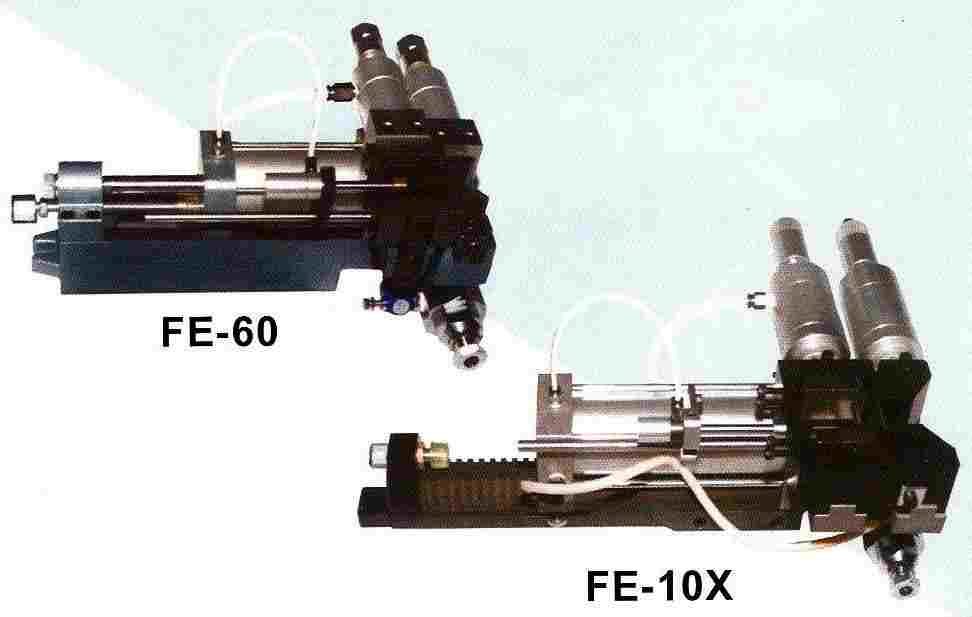

FE-60 & FE-10X Air Wire Stripping Machine




Features:

1. Body assembly can do it yourself, easy operation and    maintenance, compact size.

2. Either are or solenoid foot switch is available.

3. Whole body made by aluminum, long-wearing, rustless.

4. Flexible inlet structure can fit wire and let level blade,     round blade expand using range, saving blade cost.

5. Suit for AC/DC power cord, electric wire, flat cable and     coaxial cable.

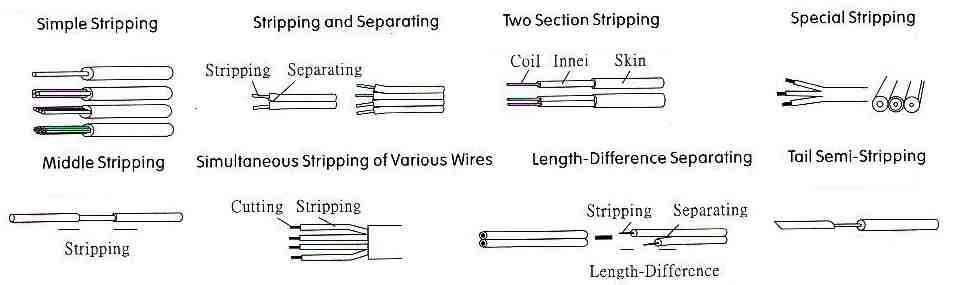

Stripping Example:

Model

FE-60

FE-10X

Dimension

420 x 250 x 160mm

510 x 330 x 200mm

Weight

12kgs

15kgs

Air Source

5 ~ 7kgs

5 ~ 7kgs

Stroke

65mm

100mm

Wire Size

Max. 9mm

Max. 15mm

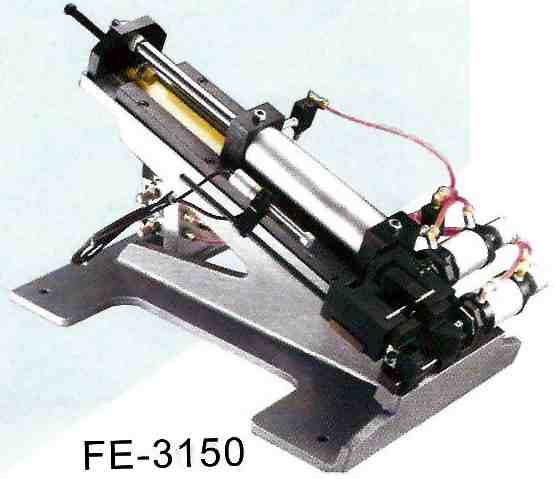

FE-3150 Air Wire Stripping Machine




Features:

1. Unique sliding mechanic design, good for operation.

2. Double motion cylinder.

3. Deluxe knife mold, suitable for all kinds of blades in our line.

4. Special sliding setting, stable running stroke, accurate stripping & cutting.

5. Air power control, compact, speedy, easy to operate.

6. Knife holder adjustable, dependent on width of wire.

7. Suitable for AC/DC power cord, computer wire, electric wire, multi-core wire, special wires, etc.

                  Specification:

Model

FE-60

Dimension

600 x 420 x 360mm

Weight

45kgs

Air Source

5 ~ 7kgs

Stroke

150mm

Wire Size

Max.20mm
