C-351-701 Fully Automatic Coaxial Cables Cutting / Stripping Machine








Features:

1. This is real high-speed machine capable of processing an ultra wide range of wires from AWG#8 up      to 28 and even coaxial.
2. Wider rollers rae used to secure further stability of wire feeding.
3. The right rollers are provied with a roller gap adjuster: Maxium gap is 11mm, to be able ensure stable     feeding     of wires wven with soft insulation material.
4. You can adapt the machine setting by a touch of button to adjust for changes of wire size. This is extremely
    convenient to support a flexible production of various types of wires cutting and stripping.

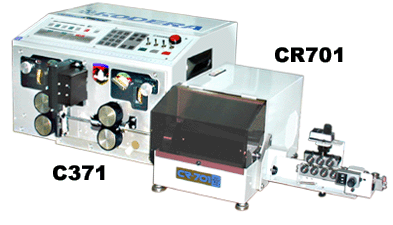

5. Complete fully automatic operation by using CR-701 +  C371, cost-effictive and time-saving.
6. Computer control enables the rotary cutter to be adjusted automaticlly. Outside cable diameter up to 8mm.


Specification:

Model

C-351

Dimension

450 x 425 x 243mm

Weight

28KG

Power Supply

AC 110V/220V, 50Hz/60Hz

Power Consumption

100W (rated), Max. 170W

Cutting Length

1 ~ 99999 mm ( depends on wire material)

Cutting Tolerance

adjustable

Stripping Length

0.1 ~ 48mm ( depends on wire material)

Wire Size

AWG# 8 ~ 28 ( depends on wire material)

Model

C-701

Diemension

280 x 320 x 195mm

Weight

14KG

Power Supply

AC 110V/220V, 50Hz/60Hz

Power Consumption

130W

Cutting Length

1 ~ 99999 mm ( depends on wire material)

Wire Size

Max. 8mm
