YF-930 Taped Resistor  Transforming Machine
for converting tape width from 52mm to 26mm.

To convert tape width from 52 mm to 26 mm, improving produtivity of automatic inserting machine.

Features:

Applicable to various type of Risistor and Diode.

  • With the function to stick first then cutting the tape so as to get more stability than ever.
  • Easy Maintenance and operation.

Specifications:
Size: 700mm (L), 500mm(W), 10800mm(H)
Weight: 70 Kgs
Power Supply: 110V/220V AC 60HZ/50HZ
Performance: Max 60,000 PCS/H

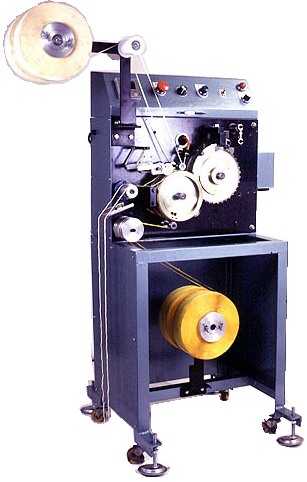

GD-680 Cupper Wire Cutting and Tapping Machine
available for making 52mm & 26mm jumper wire for insertion machine

  • Suitable for 0.5mm ~ 1.0mm coiled type copper wire, after wire cut automatically , it will be glued become taped style material. Then to supply for automatic part inserting machine, pin inserting machine or supply for soldering link wire, etc.
  • The machine is suitable for coiled type copper wire, the following process of automatic pull sire, cut wire, lined up , tapping, joined, etc. will be done synchronously.
  • Equipped with special tools and long life for cutting lead wire.
  • Equipped with computerized optical fiber type counter and machine can be set required tapping quantity.
  • The machine is fitted with super precise degree diveded tapping wheel, It is high accuracy and to enhance working efficiency.
