RF-101-C, For both Loose and tape packed components.

 RF-101-C Series Pinching type former/cutter

Powerful, heavy duty, automatic lead pinched cutter/ formers machine with vibrator feeding bowl. The varied pinching specification is available with customized die set, offering wide rage application. Models are available for Taped, loose and taped/loose packed components.

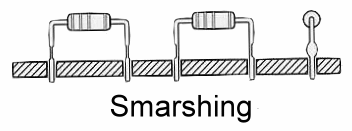

Pinching type former:
RF-101-C, For both tape and loose packed components.
RF-101-CA, For loose packed components only.
RF-101-CB, For taped packed components only.

Optional Device:
Lead-supporter device: When bending the components, the supporter will hold the lead to protect the components not to be damaged. This is suitable for bending Diode.

  • Power: 110/220 V AC. 60/50HZ
  • Size: 1050mm(L), 600mm(W), 650mm(H)
  • Weight: 115 Kgs.

RF-101-CB, For taped packed components only.

A Body Length 3.8~20 mm
B Body Dia. 2.3~8 mm
C Shoulder 1.2 Min
D Kinking Height 8 mm
E Lead length Adjustable
F Pinching Height 2 mm
S Pinching Width W + 0.4~0.5
L Lead Pitch A + 2C
L Lead Wire Dia. 0.6~1.3
Capacity 110 pcs/Min

RF-101-CA, For loose packed components only.
