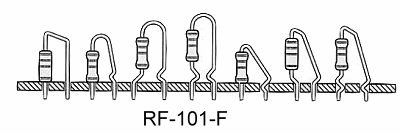

Powerful, heavy duty, automatic vertical lead mounted cutter/ formers machine with vibrator feeding bowl. The varied pinching specification is available with customized die set, offering wide rage application and suitable for mass production operation. Models are available for Taped, loose and taped/loose packed components.

Optional Device:
Lead-supporter device: When bending the components, the supporter will hold the lead to protect the components not to be damaged. This is suitable for bending Diode.

• Power: 110/220 V AC. 60/50HZ
• Size: 1050mm(L), 600mm(W), 650mm(H)
• Weight: 100 Kgs.

RF-101-FB, For taped packed components only.

	A	Body Length	3.8~20 mm
	B	Body Dia.	2.3~8 mm
	C	Shoulder	1.2 Min
	D	Lead Pitch	5 Min
	E	Lead length	Adjustable
	W	Lead Wire Dia.	0.4~1.3
	Capacity		110 pcs/Min

RF-101-FA, For loose packed components only.
