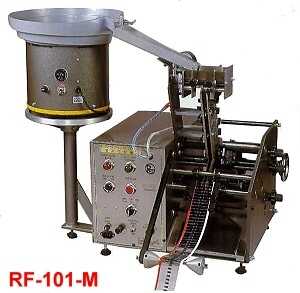

RF-101-M, For both Loose and tape packed components.

RF-101-M Series
Kinking type former, suitable for mass production line

Powerful, heavy duty Auto Axial Lead former/ cutter, with customized die set available for varied forming specification.

The models are available for Tape packed (M type), Tape packed (MB model) and Loose Packed (MA Model).

  • Power: 110/220 V AC. 60/50HZ
  • Size: 1050mm(L), 600mm(W), 650mm(H)
  • Weight: 115 Kgs.
A Body Length 3.8~20.0 mm
B Body Dia. 2.3~8.0 mm
C Shoulder 1.2 Min
D Kinking Height 8 mm
E Lead length Adjustable
S Kinking Depth 2~3 mm
L Lead Pitch A + 2C
W Lead Wire Dia. 0.4~1.3
Capacity 110 pcs/Min



RF-101-MB, For taped packed components only.

RF-101-MA, For loose packed components only.
