GAM-30 V-Cut PCB Separator (The Best Achievements For Reduce Stress)





linear and circular knife

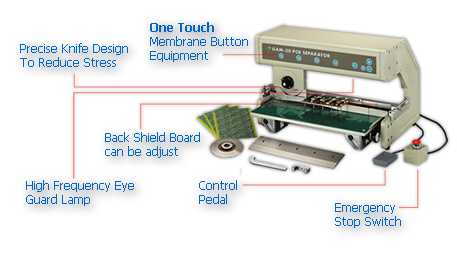

  Firm structure to be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.

  • Effectively reduce stress and prevent solder chap from PCB separation.
  • Unique material of blade, ensure the smooth cutting edge of PCB.
  • Touchable panel with five route adjustment be considered to fast change different size of PCB.
  • Equipped with a high frequency lighting to protect eyes and enhance efficiency for operating.
  • Strengthened safety device, prevent harm from operator.

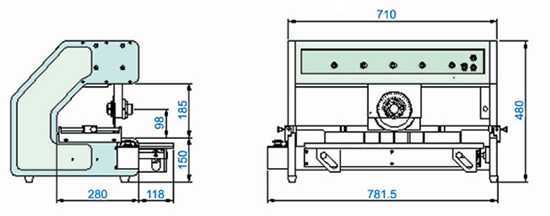

    • Specification:
    Blade 150,250,350,500
    Velocity(mm/sec) mm/sec
    Blade Route(mm/max) 400(change with the length chosen) mm/max
    Blade Material Alloy Steel
    Blade Trimming(mm) 0~2 mm
    Down Material Board Trimming(mm) 0~50 mm
    Normal Rated Power(W) 250 W
    Back Shield Board Depth Trimming (mm) 0~150 mm
    Power Supply(V) 110/220 V
    Blade Size(mm) Diameter 150 mm
    Down-Blade Size(mm) 460 mm

      Application: PCB separating after SMT process.

    Contrast of Separation Edge

      Cutting Capability

    Smooth Cutting Edge


    Coarse Cutting Edge


     Maximum Cutting Dimensions(mm)：400×150
    Maximum Cutting Thickness(mm)：3.2

  • A：PC Board Cut Thickness(mm)：1.0~3.2
  • B：Minimum V-CUT Size(mm)：0.25
  • C：PC Board V-CUT Fillister Thickness(mm)：0.3~0.8
    		•



      Option: Blade, Light, Down Blade.
