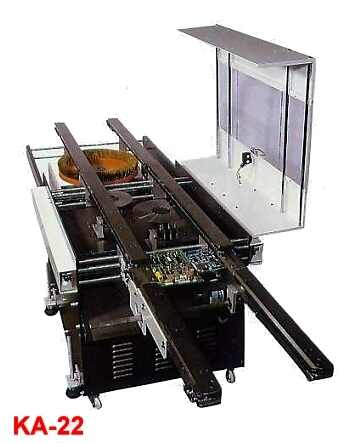

KA-22 Automatic Twin Blades PCB Lead Cutter

Double blades design to trim the extra long leads automatically and with additional brushing system. The effective cutting area up to 420mm. The PCB residues after soldering and leads adhere on the boards after trimming can be easily removed by the equipped brush system.

Equipped with adjustable warp correction device in which correct the warp condition of PCB before soldering process.

The inlet and outlet bridge conveyors are optional selectable which flexible for connecting the wave soldering machine and conveyor line.

Specification:

Spindle Speed	4500 RPM
HP	3/4 HP
Conveyor Speed	0 - 3 m
Min. Lead Height	1.0mm Min.
Net Weight	350Kgs
Machine Size	270(L) x 120(W) x 110(H) m/m
Power	220V 50/60HZ
