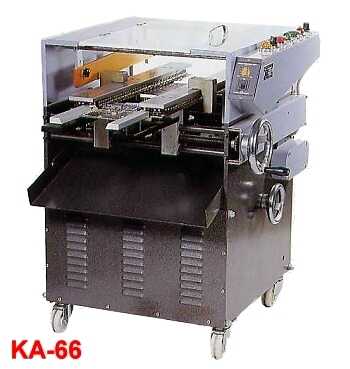

KA-66 Automatic PCB Lead Cutter
|
|
|
Feature:
- Best Selection for midium of high volume production. This model is designed
to trim the extra long leads automatically and efficiently on the PCB that
components inserted and soldered.
- A pair of conveyor chain is equipped in the model in which clamp and deliver
the PCB to the blade turning in high speed for trimming. Warp prevention device
is equipped to ensure no damage on boards.
- Expandable in function and working independently– The model can be optional
connecting in line with wave soldering machine by Connection Bridge and operates
automatically.
|
|
Specification:
| RPM of
Spindle |
4500 |
| HP |
3/4 HP |
| Feeding
Speed |
0 - 3 m
Adjustable |
| Min. Lead
Height |
1.0mm
Min |
| MAX.PCB Working
Size |
500mm(L) x
300mm(W) |
| Size |
900(L) x 670(W) x 800(H)
m/m |
| Power |
220V
50/60HZ |
| Net Weight |
115Kgs |
|
