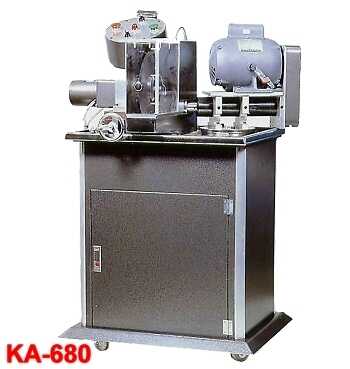

KA-680 Blade Re-sharpener





Simple and easy for operation and maintenance, no production delay because of re-sharpening out of house. This machine is designed and built to re-sharpening the tungsten carbide blade that used in PCB lead cutting machine. Simple and easy for operation and maintenance, no production delay because of re-sharpening out of house.

Five Main portions :
a. Main frame of the machine
b. Electric control system
c. Coolant system
d. Grinding device
e. Feeding device

  The machine is available for grinding operation with or without coolant. In which the coolant is recycled.

  • Tip : The blade need to be re-grinned as it is worn out in a efficient machine.
    		•

      Specification:

    RPM of Spindle 3000
    Cutting Angle Adjustable 17o - 22o
    Diamond Wheel 125D-6W-4X-35T-14B-31.75H
    Power 220V 50/60HZ
    Capcity 20 Minutes/Pcs
    Size 800(L) x 750(W) x 1200(H) m/m
    Net Weight 135Kgs
