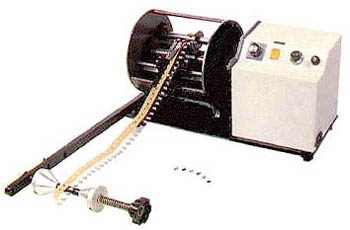

RT-70 Motorized Radial Component Cutting Machine

Dimensions: 470(L) x 180(W) x 235(H)
Net Weight: 13 kgs
Production Rate: 35,000 pcs/hr

  RT-79 hand-crank radial lead cutters offers easy, no tooling required set-up. These machine do not score or damage component leads, nor do they lace mechanical stress or axial tension on the component. The machine cuts components from single bandoleers with a fully adjustable lead length from 2 mm to 10mm and the blade will accommodate lead gauges from 0.3 mm to 1.2 mm.

Independent rotary disc cutters fir longer cutting life.

  • Won't score or damage leads or components.
  • Heavy duty construction.
  • Easy maintenance.
  • Simple operation.
  •      Two models available
    RT-70 : motorized radial lead cutter with tape reel holder meets most lead cutting requirements. For 12.7mm tape pitch.

    RT-70S :  motorized radial lead cutter with tape reel holder. For 15mm tape pitch.

    Specification:

    MODEL RT-70 RT-70S
    Dimension L d A L d A
    Min.mm 2 0.3 12.7 2 0.3 15
    Max.mm 10 1.2 12.7 10 1.2 15
