High Temperature
Cast Iron Tank Lead Free Soldering Pot - against
corrosion.
|
CI- 1020 & 1035
|
|
- Solder pot material is made
of special casting iron.
- Indirect
heating
- LED digital display
temperature controller
- Overheat
auto-off
- Solid state relay
control
- Amperemeter
- Cooling
fan
|
Model
|
Spec.
|
Power
|
Heater
|
Solder
|
temp.
|
N.W.
|
1020
|
100x200x50 mm
|
220 V
|
1.4 kw
|
7
kg
|
450°C
|
1.5 kg
|
1035
|
100x350x50 mm
|
220 V
|
3.2 kw
|
13 kg
|
450°C
|
2.2 kg
|
|

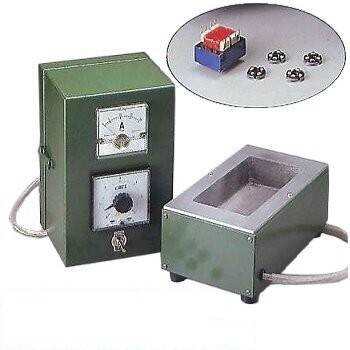

SP Series Lead Free Automatic Temperature Control
Soldering Pot
|
|
Automatic temperature control soldering pot,
various size and model.
Feature:
- This is the simplest and easiest PCB soldering device.
- The inner tank and heating tubes are made of stainless steel. On the
controlling box, there are temperature and ampere meters, which is helpful to a
safe and convenient operation.
- The 24-h timer is optional.
|
Specification:
Model No. |
Consumption kW |
Pot
Size (mm) |
Weight of meld
tin (Kgs) |
SP1015S1 |
0.6 x 1 |
100 x 150 x 70 |
6.6 |
SP1318S1 |
0.8 x 1 |
130 x 180 x 70 |
10.3 |
SP1520S1 |
0.9 x 1 |
150 x 200 x 70 |
13.2 |
SP1825S1 |
0.9 x 2 |
180 x 250 x 70 |
19.8 |
SP2030S1 |
1 x 2 |
200 x 300 x 70 |
26.4 |
SP3040S1 |
1.3 x 3 |
300 x 400 x 70 |
52.8 |
SP3045S1 |
1.5 x 3 |
300 x 450 x 70 |
56.4 |
SP3047S1 |
1.5 x 1 |
300 x 470 x 70 |
62 |
SP3050S1 |
1.5 x 3 |
300 x 500 x 70 |
66 |
SP35S6S1 |
1.6 x 3 |
350 x 550 x 70 |
84.7 |
SP4050S1 |
1.6 x 4 |
400 x 500 x 70 |
66 |
SP4060S1 |
1.6 x 4 |
400 x 600 x 70 |
105.6 |
SP4070S1 |
1.6 x 4 |
400 x 700 x 70 |
123.2 |
|
Round Type Lead Free Soldering pot -for
commponent tinning
|
|
The pot is designed for easy
movement and installment. The automatic temp. control ensures great safety.
besides, special designs for clearing away oxides are
attached.
Application: Melting wax,
welding electronic parts and wires and DE soldering for through hole components,
connector etc.
Model
|
Spec.
|
Power
|
Heater
|
Solder
|
temp.
|
N.W.
|
R- 64
|
60X40 mm
|
110/220 V
|
350 w
|
1.5 kg
|
400°C
|
2.5 kg
|
R- 84
|
80X40 mm
|
110/220 V
|
450 w
|
2.0 kg
|
400°C
|
2.8 kg
|
R-104
|
100X40 mm
|
110/220 V
|
550 w
|
2.5 kg
|
400°C
|
3.3 kg
|
|
