GAM-60 / 60A Solder Paste Mixer



  • Excellent for ISO 9000 solder paster mix process condition. Strong mixing / kneading power, enables preparation uniform / high-quality solder paste. Increasing printing quality.
  • LED display panel and microprocessor control, easy to operate.
  • Operation time memory capability.
  • Mixing / kneading solder paste without contact exterior atmosphere.
  • Universal fixture, suitable for all kind of commercial container.
    • Feature:
    • Easy to Operation
      GAM-60 solder paste mixer is easy for operation.
      Put the solder paste can on the jig then adjust the time.
      Press "Start Button", and the GAM-60 will start to mix the solder paste until the time you set. Then a well-mixed solder paste is available.
    • Well Mixing Capacity
      GAM-60 solder paste mixer is equipped with powerful solder paste mixing capacity and can easily provide a well-mixed solder paste in the SMT procedure.
    • Flexibility
      GAM-60 is equipped with general solder paste can jig which fits various kinds of solder paste can. The jig is designed for easy loading/unloading the solder paste container.
    • Precise Operation Time Control
      GAM-60 is equipped with microprocessor and LED displayer. The time span is from 6 seconds to 9.9 minutes. A buzzer will sound when the time is up.
    • Low Maintenance
      GAM-60 is almost free from lubricated maintenance.
      Cost saving operation

    Options

  • 60E Balancer
    300g×1 200g×1 100g×2 50g×2

    •





    【Specification】
    Model GAM 60 GAM 60A
    Arm Rotation Speed Approx 400 RPM / MIN (WHEN LOADED)
    Solder Container 500g / 1000g Up two container can be loaded
    Power Supply AC 110V / 220V 60HZ
    Construction Painted with empoxy base paint
    Micro processer Capability Record former data by memory
    Revise data for save real time
    Display & Alarm LED Digital Display
    Flash light with audio alarm
    Kneading timer 0.1~9.9 Min
    Operational Touch panel, easy operation
    Holding ø 60min L：90mm ø 130min L：130mm
    Noise Low operation noise
    Dimension L×W×H(mm) 390×390×385 mm3 580×580×445 mm3
    Weight 45Kg 65Kg

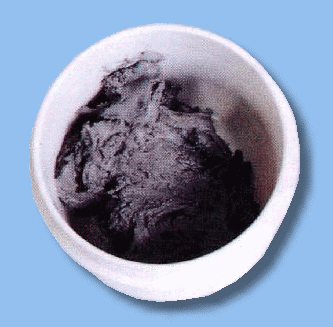

    【Image of Before-After Mixing】



    【View】GAM-60



    【View】GAM-60A

    【 Data List of Before-After Mixing】

    　

    　

    　

    Before Mixing

    After Mixing

    Brand name

    Series

    Ps

    CPs

    		 Ps Cps
    NS

    AMQQTW-101

    		 2430ps 107.6 Million cps 1635ps 120.6 Million cps
    AMQM293TA 2090ps 81.2 Million cps 1412ps 79 Million cps


    GAM 62A Centrifuge Machine




     Universal holder, suitable for all kinds of Plastic tube.

    • A emergence stop function be designed to ensure safety operating environment.
    • LED dispaly panel and microprocessor control, easy to operate.
    • LED digital display. Finish light with audio alarm.
    • Durable structure, low maintenance cost.
    【Specification】
    Model GAM 62A
    Power Supply AC110V/220V 60/50Hz
    Electric Load 150VA
    Arm Rotation 3200RPM(60Hz),2600RPM(50Hz)
    Setting Time 0.1~9.9 mins
    Dispenser Container 142 x ø 26mm
    Dimensions L×W×H(mm) 415×455×350 mm3
    Tube Qty 2p or 4p
    Weight (kg) 55 Kg
